Fore Fuel Pressure Regulator Bracket (Hidden) for 2015-2024+ Mustangs, S550-S650

When installing a Fore fuel system on a 2015+ Mustang(GT, GT350, GT500), mounting the regulator is one of the more annoying steps because there is no perfect spot in the engine bay. Drilling the mounting holes can be difficult with the valve cover and brake lines in the way, and once it's done, your fuel lines end up running awfully close to the headers.

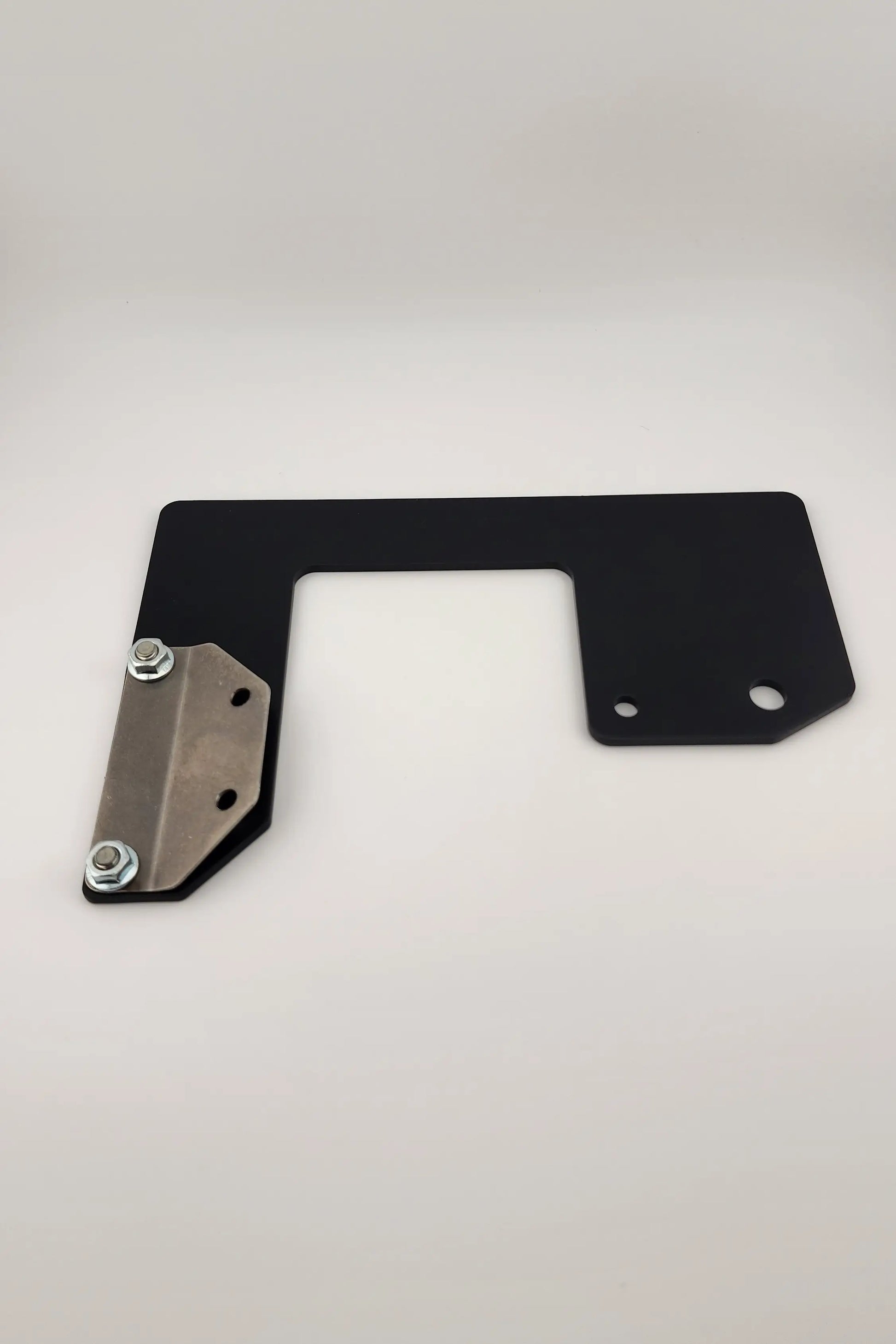

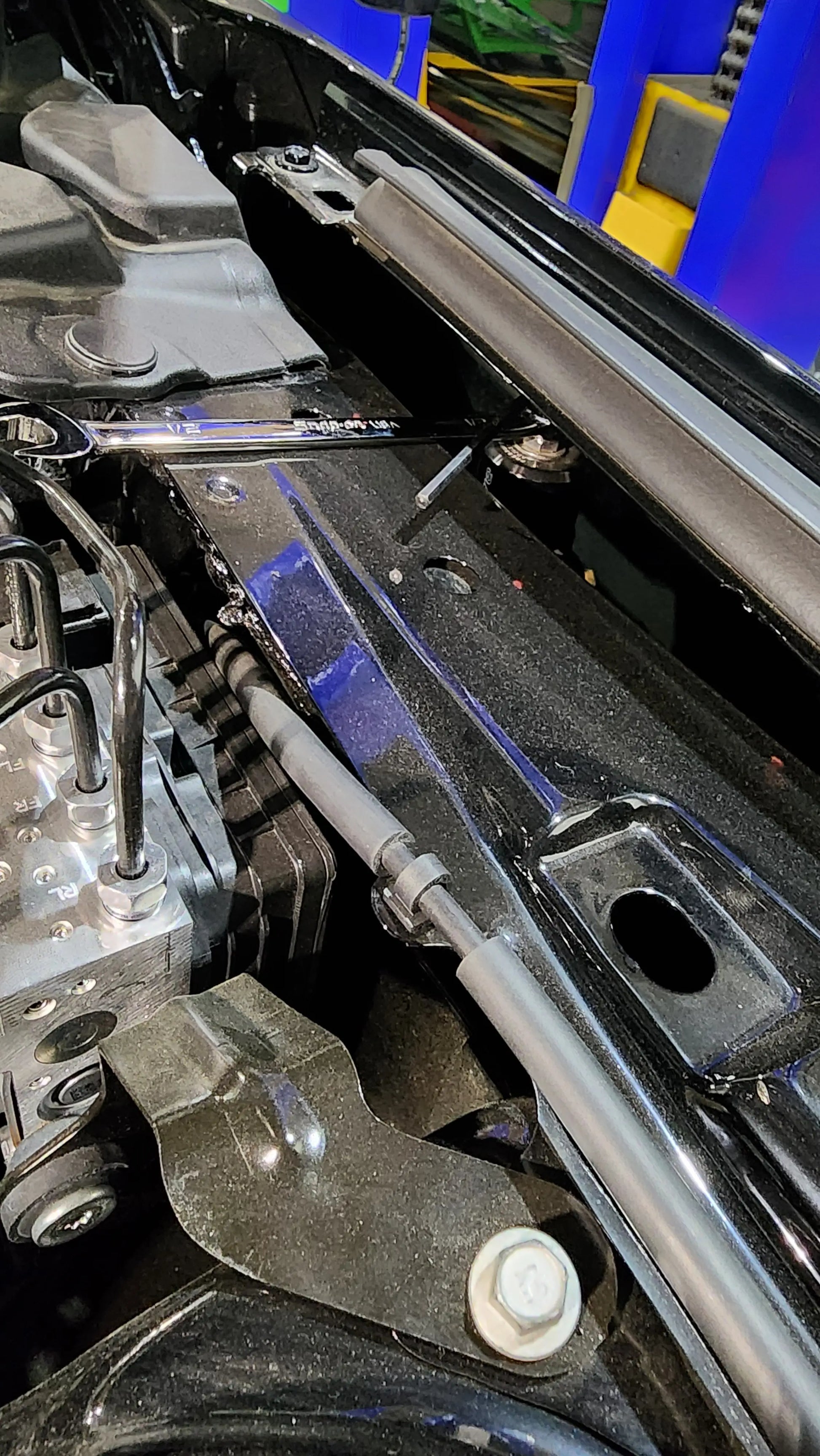

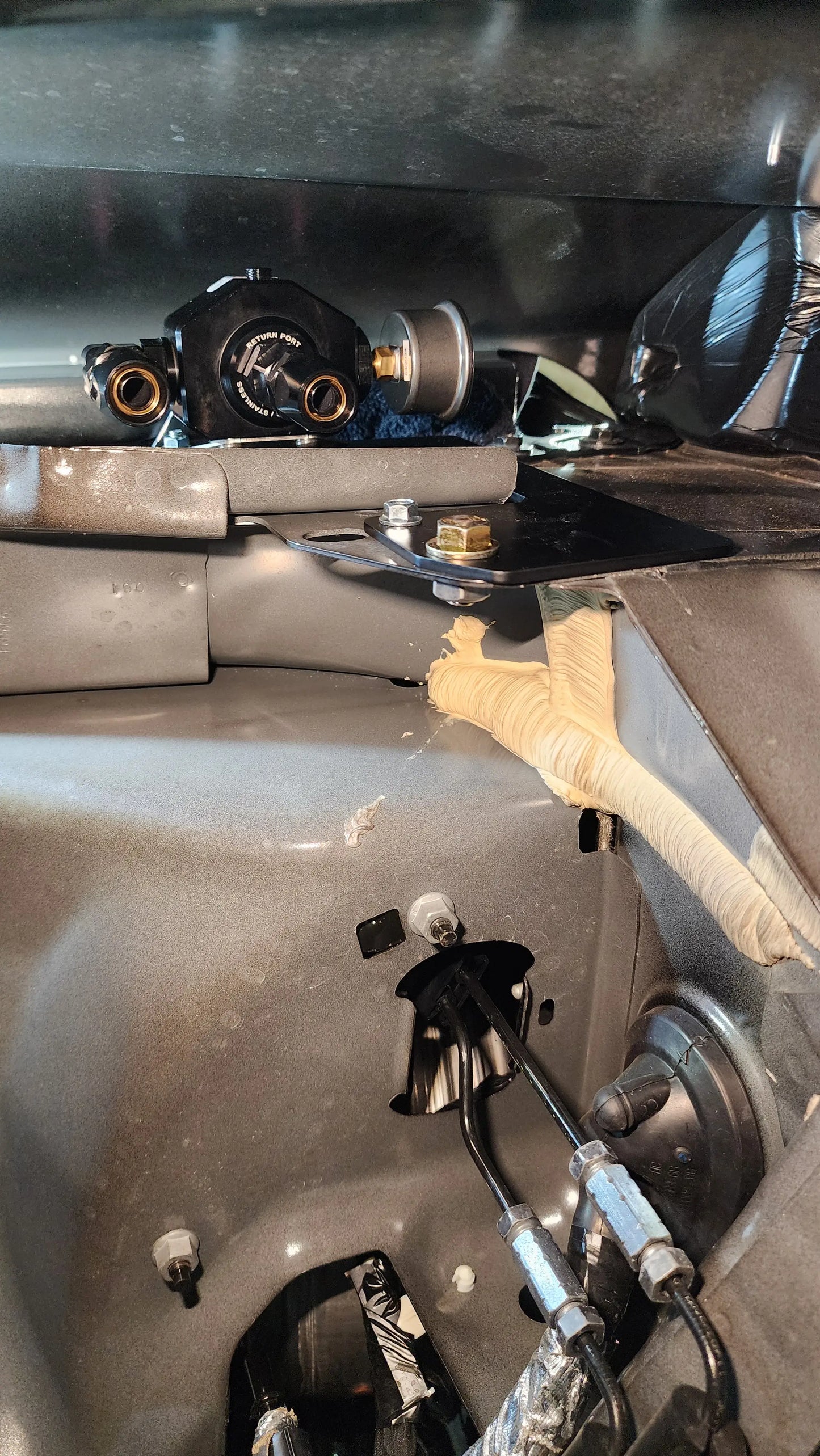

Instead, with our bracket your regulator gets hidden in the driver's side inner fender, but can still be easily accessed for pressure changes by reaching in between the top of the fender and the unibody frame rail, this can be seen in our product images. This all allows for very easy routing of your fuel lines, minimal routing near exhaust, and an extremely clean engine bay with minimal fuel lines running through it. The smaller stainless steel bracket in the pictures is what comes with the Fore regulator, so your regulator will bolt on in place of it.

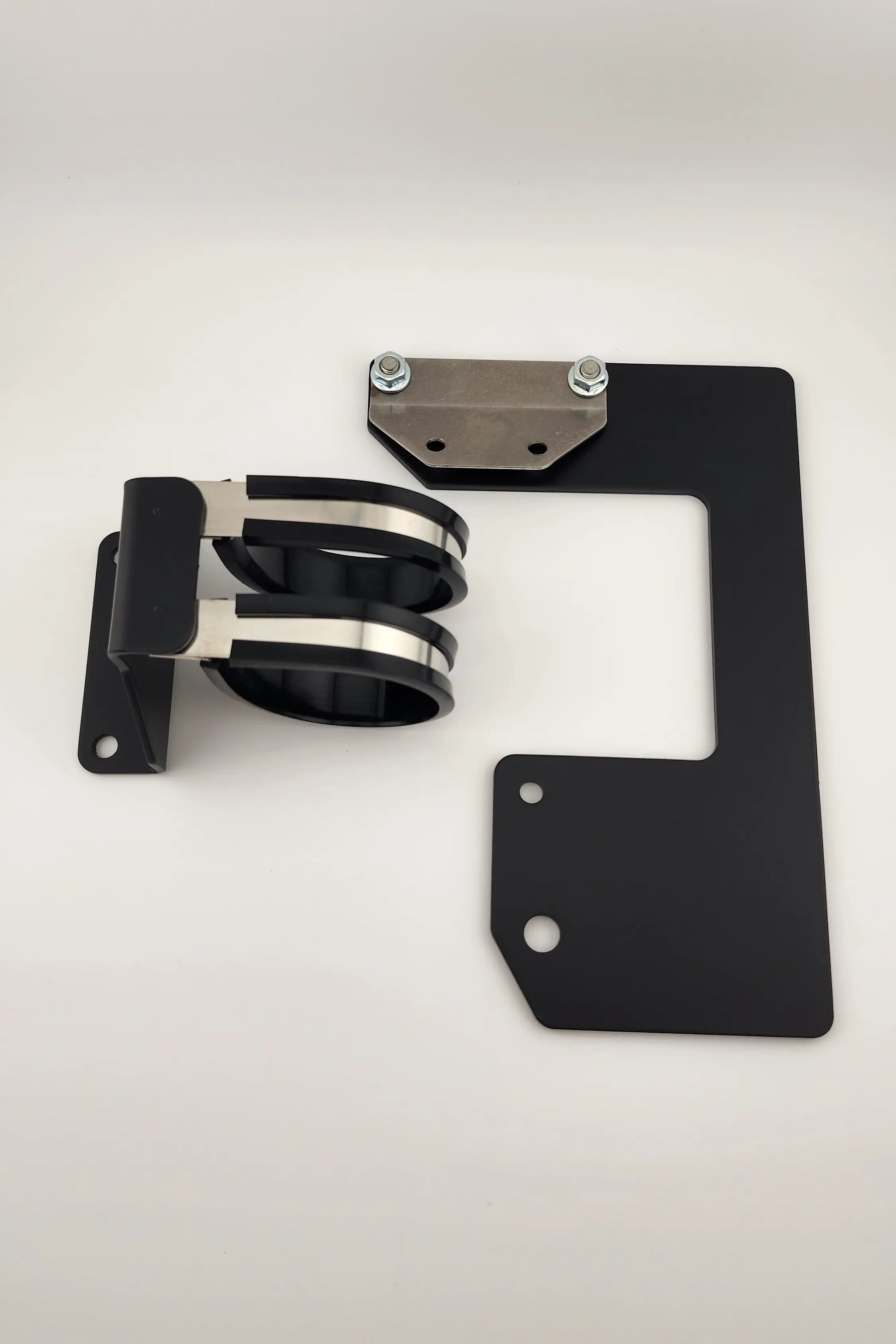

Be sure to also check out our Fore fuel filter mounting bracket if you want to make your whole install a breeze.

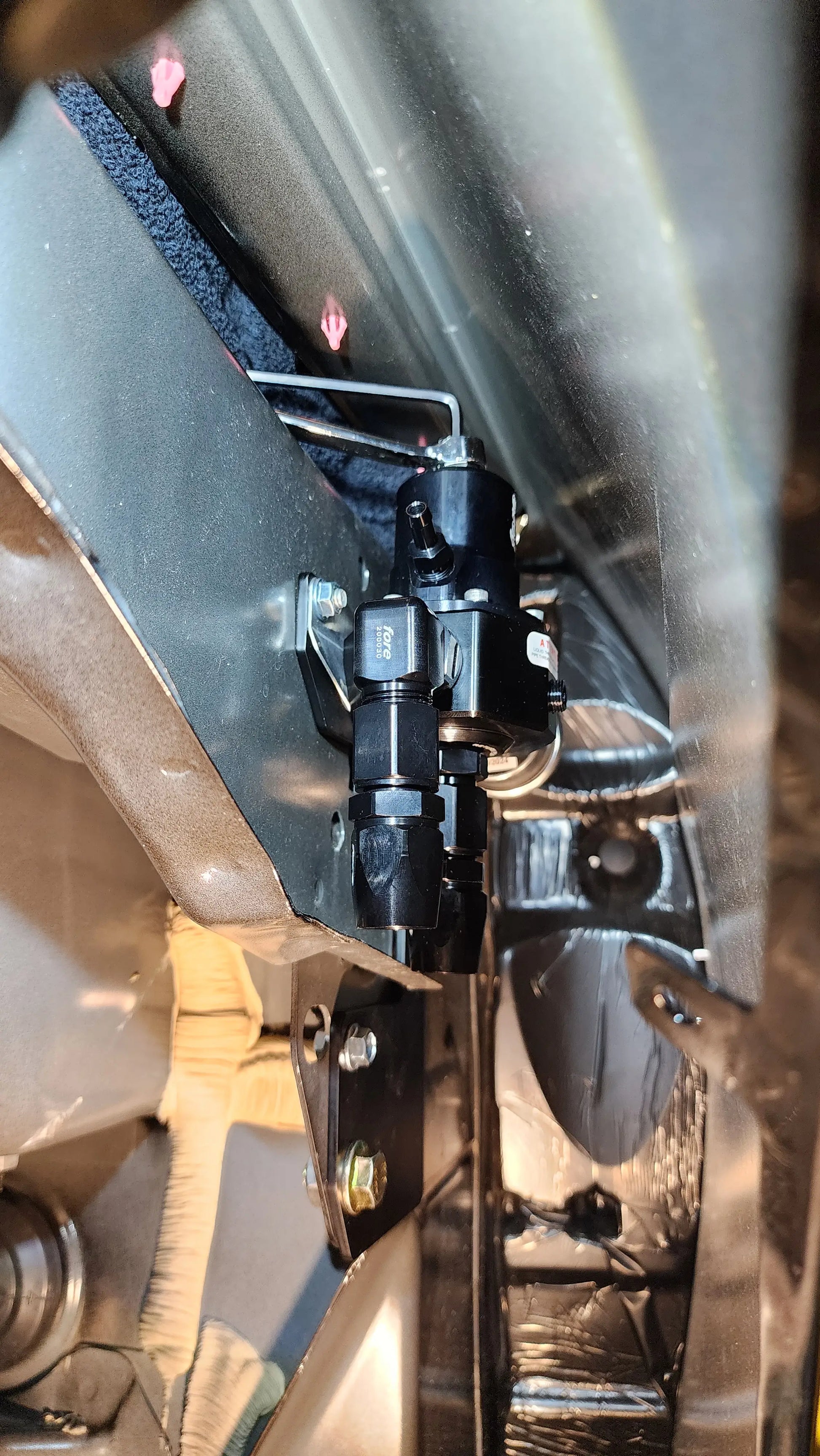

This bracket also comes with an -8ORB to 1/8NPT adapter, it is used to install the Fore supplied pressure gauge like seen in the pictures. This mounting location allows you to easily verify pressure from the engine bay, with the use of a mirror, while guaranteeing maximum clearance to the fender itself.

PN: NA-M1002
