EVAP Solenoid Relocation Kit, Gen 3 (2018+) Mustang GT Manifold Swap

These kits are made to order, and ship within 2 days of order.

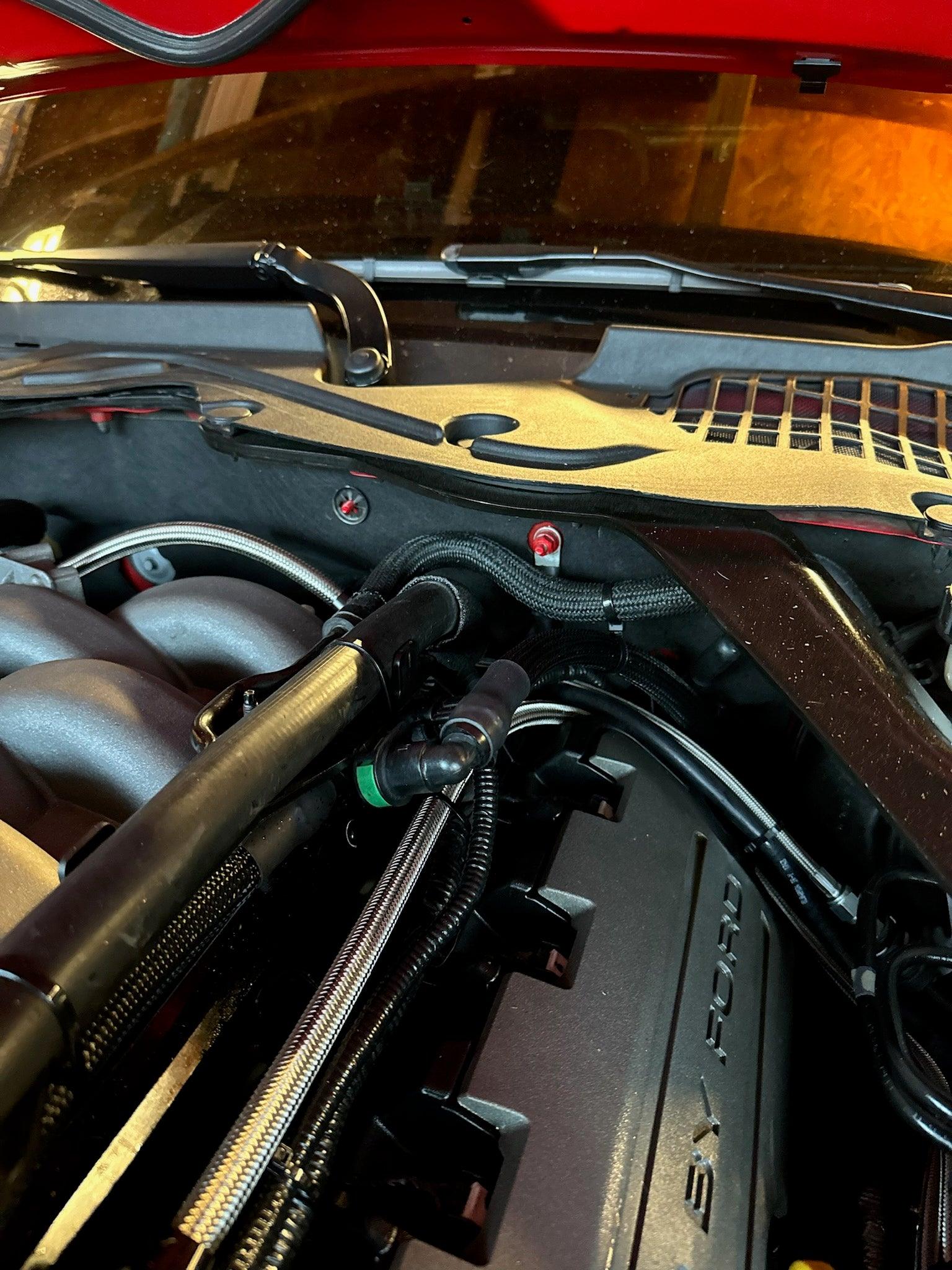

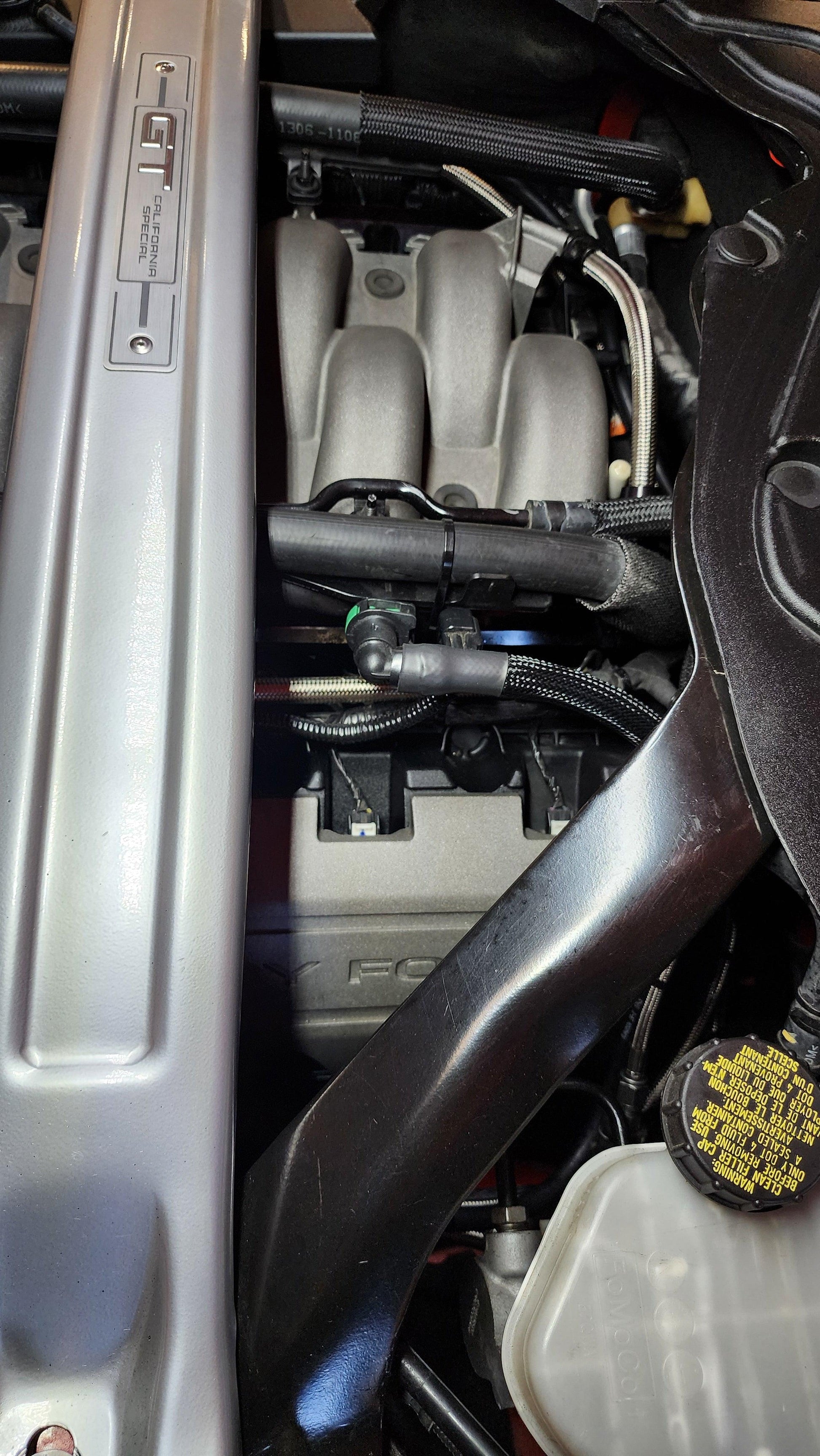

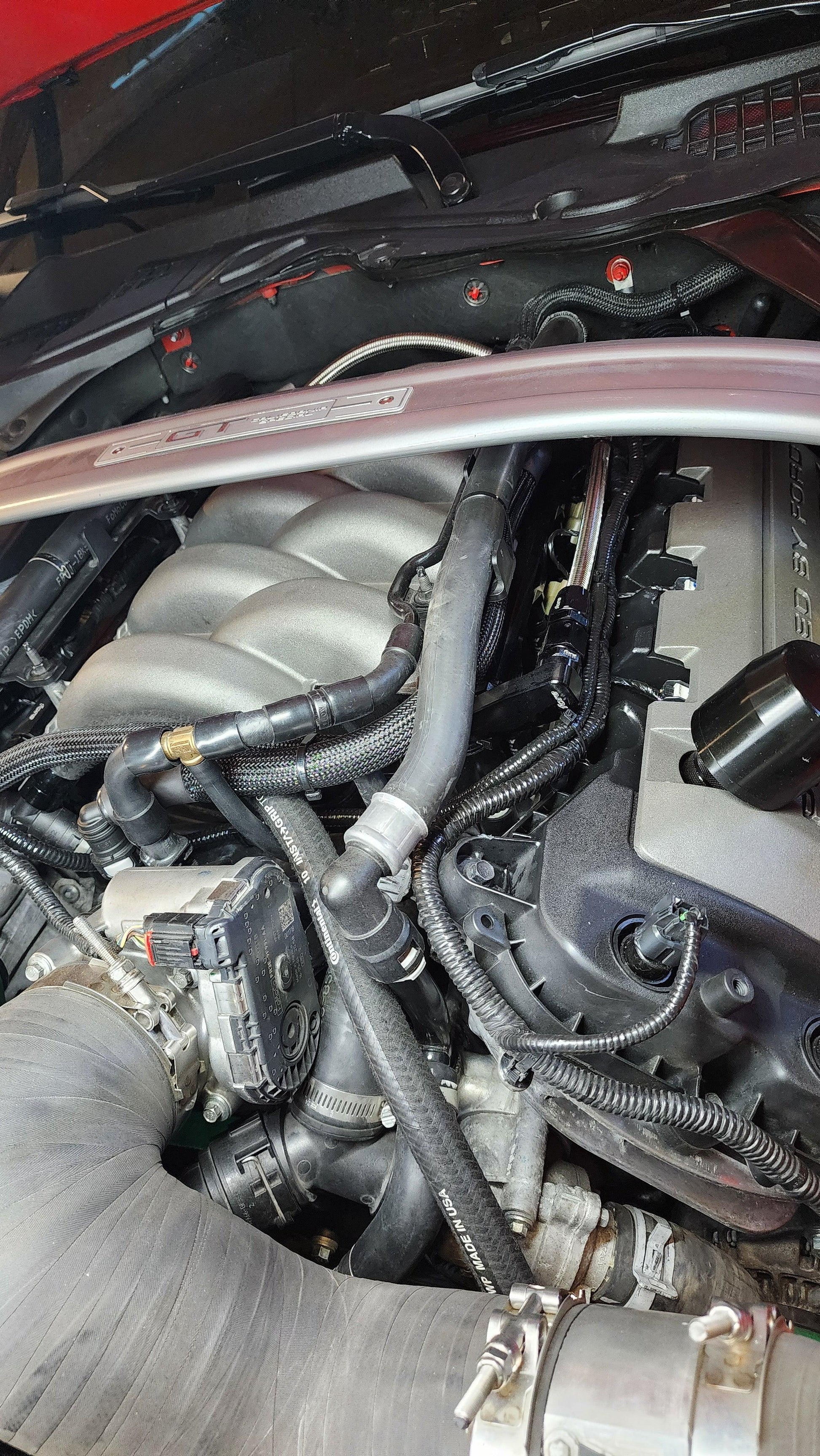

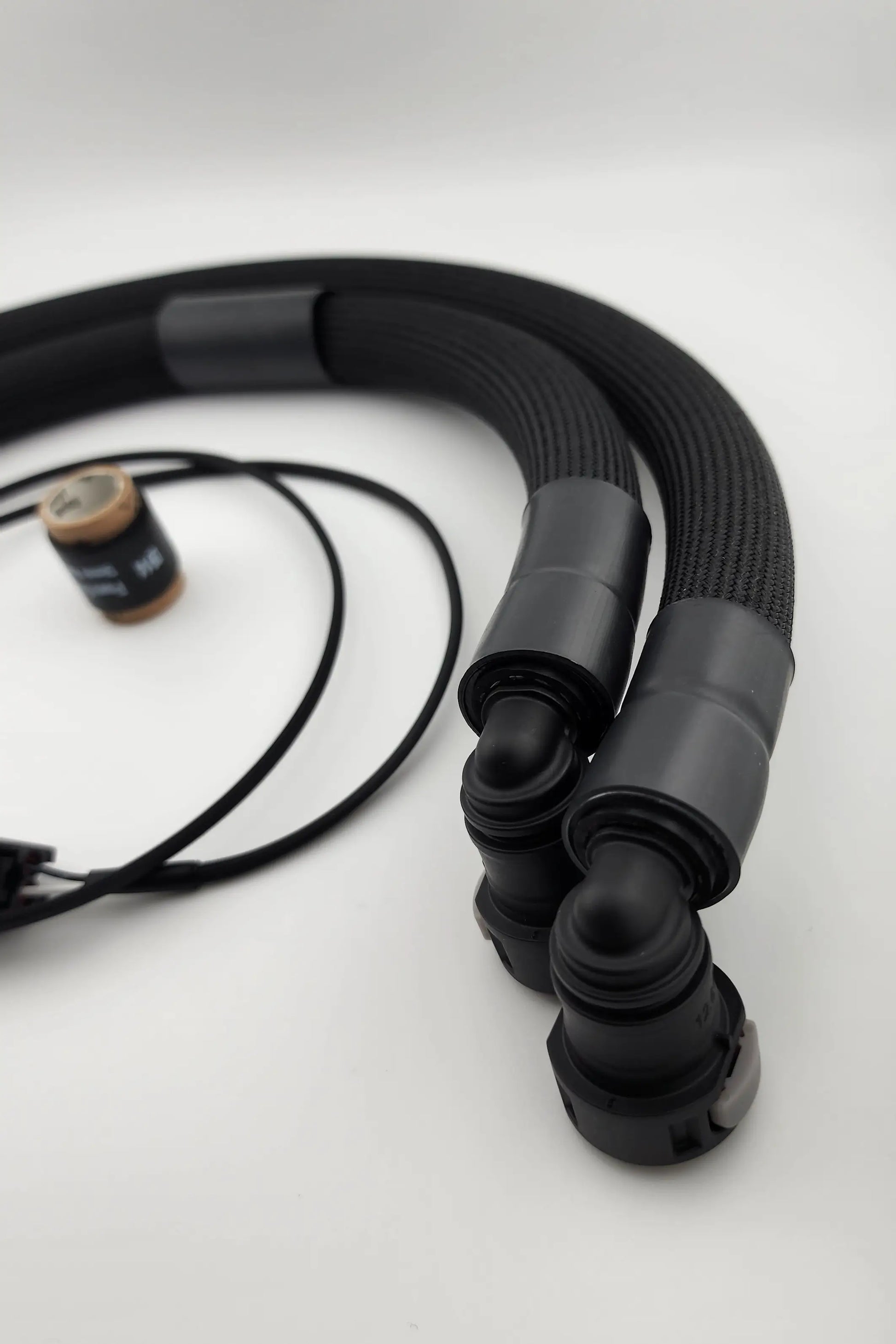

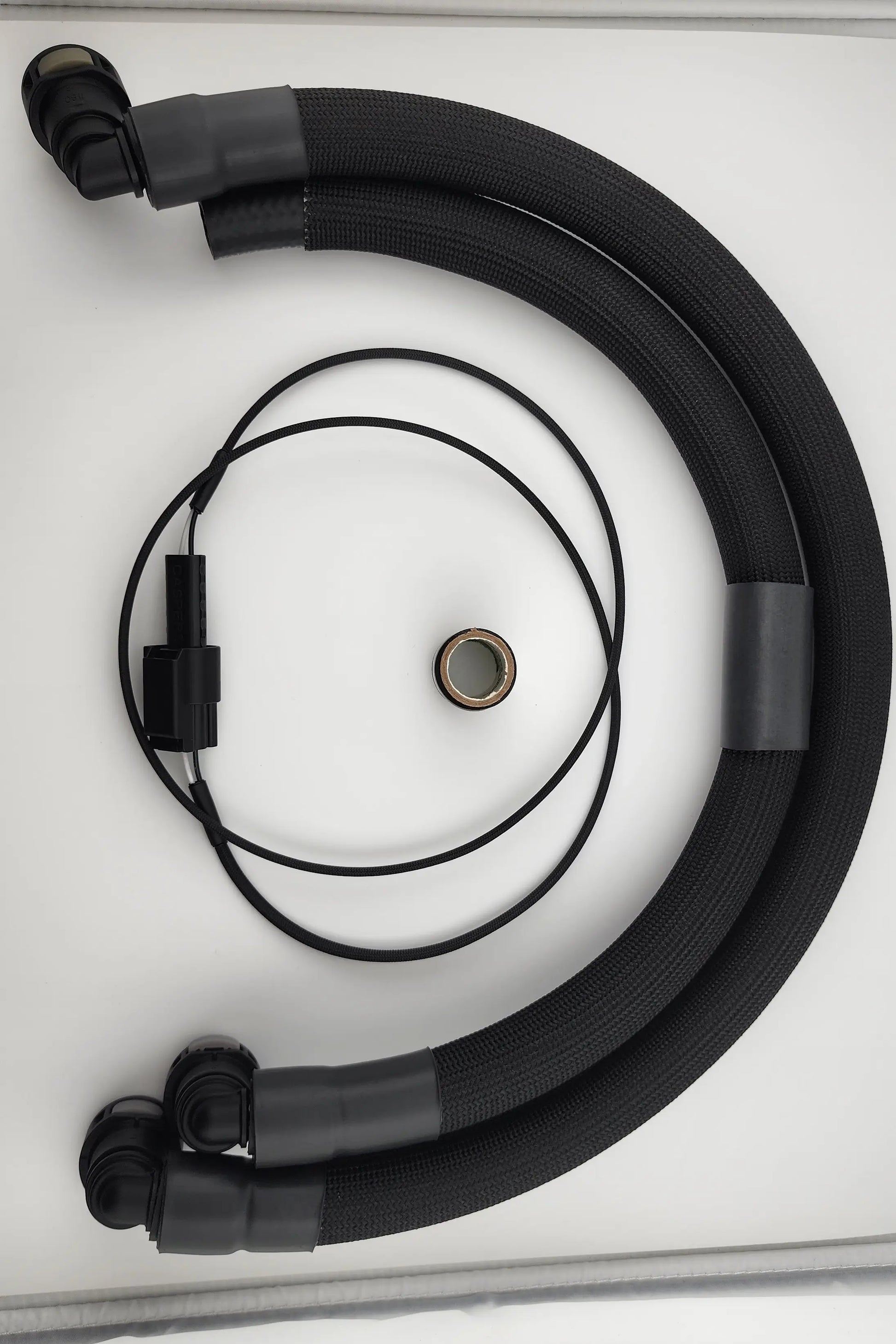

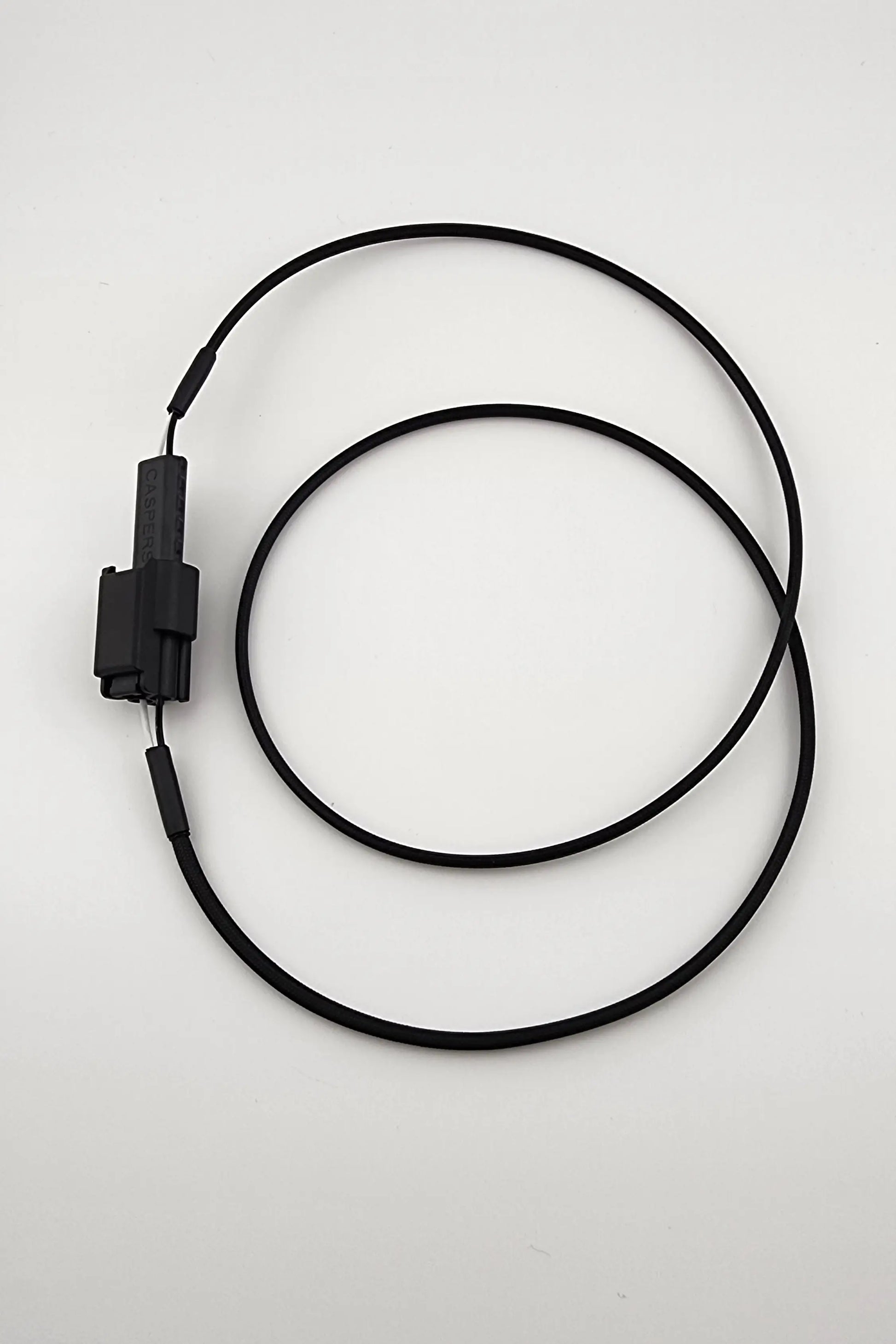

Easily clean up your Ford Mustang's engine bay after upgrading to the Gen 3 intake manifold with our relocation kit. Since the easiest way to reconnect the factory solenoid to the new intake manifold is to just run a short rubber hose, that points it straight towards the hood, that seems to be what people generally do. We hide the solenoid under the plastic heater hose tray on the drivers side, and supply you with already assembled and protected hoses, and a plug-n-play electrical extension you will need to make everything work.

This fits Gen 1-2 coyote engines (2011-2017), with the Gen 3 (2018-2023) intake manifold, we just need to know your engine generation.

This kit does require slight modification to your factory EVAP solenoid to remove the bolt perches that held it down from the factory. We've seen that many have already performed this modification to try and clean things up, so we came up with a option for them. It also allows for a very budget friendly kit.

Installation time is under an hour.

Tools Required:

• Heat Gun
• Cut-off wheel/Dremel/Hacksaw? (solenoid modification)

Tools Recommended:

• Long pick, or a small screwdriver and long arms (remove stock line)
• Electric/air sander, or some sandpaper (solenoid modification)


Here's a link to the full directions if you would like to check out what goes into the installation.

PNs:
NA-R1001, '11-'14

NA-R1002, '15-'17
