Installation Instructions: Fore Fuel Pressure Regulator Bracket

Start by removing the driver's-side-front wheel, and the reusable push pins that are securing the  wheel well liner.

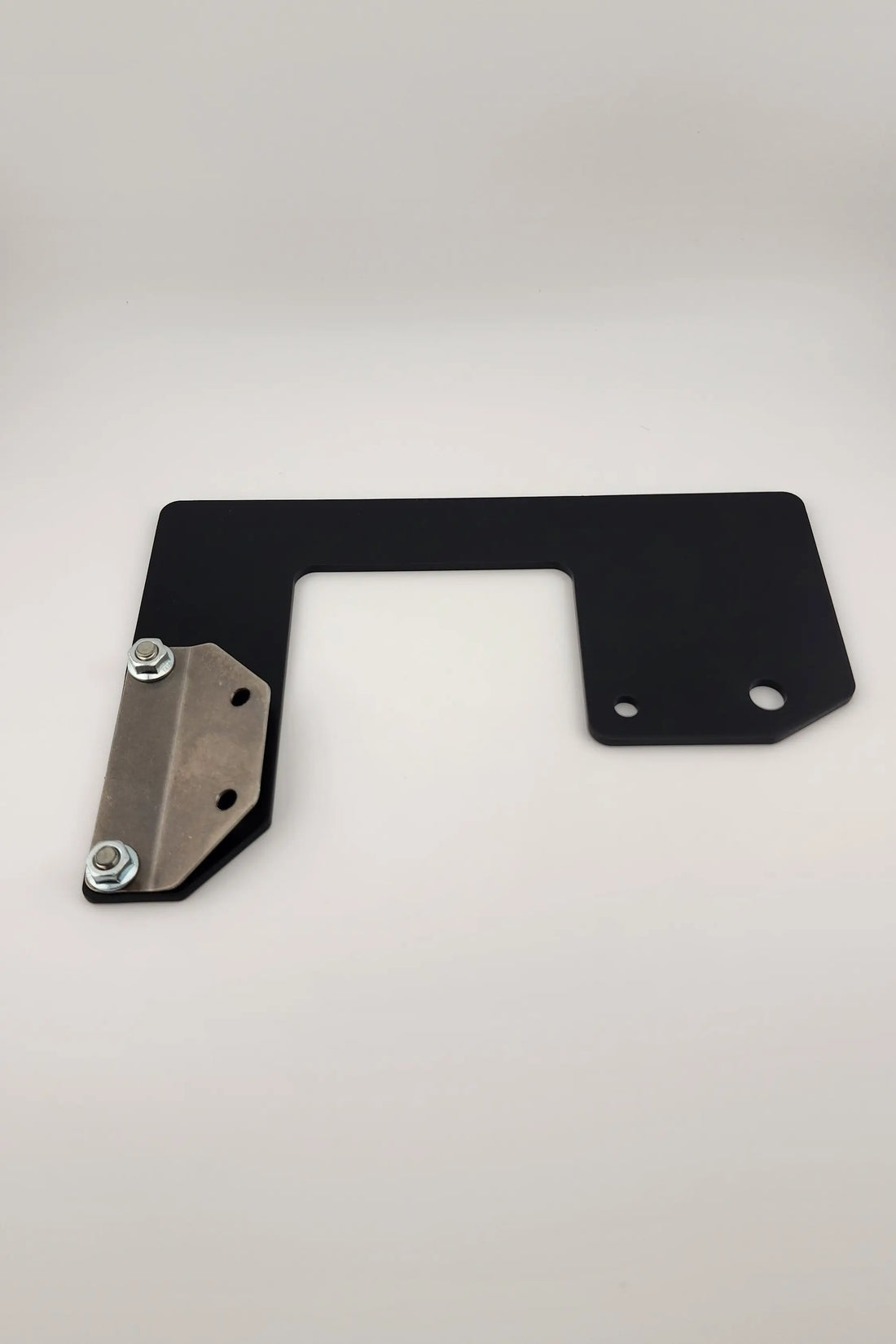

Next install your Fore regulator to our bracket using 2 of the supplied m6 nuts (We recommend having all the adapter fittings installed in your regulator before mounting to the bracket).

If you would like to position a fuel pressure gauge so that it is easy to see while adjusting pressure from the engine bay, we recommend replacing the rear 90° adapter fitting with a -8AN to -8ORB straight adapter fitting, and adding a straight -8AN male/female gauge adapter with 1/8NPT threads. Setup shown in following picture.

Refer to the following picture when installing the regulator and bracket assembly:

Reinstall your wheel well liner, and wheel, torque lug nuts to 150 ft/lbs for 2015-2026 mustangs.

Installation complete, please feel free to reach out to us with any questions at eric@nocturnal-auto.com
