Understanding ECU Wiring: The Basics

When it comes to modifying or tuning a vehicle, one of the most intricate tasks is developing a proper ECU (Engine/Electronic Control Unit) harness; from design to construction, seemingly infinite factors must be accounted for. The ECU is responsible for managing critical aspects of your engine’s performance, from ignition timing to fuel injection and everything in between. A well-executed wiring job ensures that your engine runs efficiently, delivering peak performance without worries of intermittent electrical faults. This guide will walk you through the essential aspects of ECU wiring, making the process clearer for anyone diving into automotive electronics. Or if you want us to handle it for you, reach out and include relevant information to your vehicle and engine.

Why Proper ECU Wiring is Essential

For any enthusiast looking to realize their engine’s potential, correct ECU wiring is the foundation of a reliable setup. Proper wiring ensures that all sensors and actuators connected to the ECU are transmitting accurate data, allowing for seamless engine operation. Faulty or poorly executed wiring can lead to a range of issues, from misfires to poor fuel economy, and even long-term damage to vital components.

Modern engines rely on precise electronic control to manage parameters like ignition timing, fuel injection, and boost pressure. With the ECU at the heart of these systems, correct wiring becomes crucial when you're modifying your vehicle, whether it's installing new injectors, upgrading your ignition system, or adding forced induction components like turbos or superchargers.

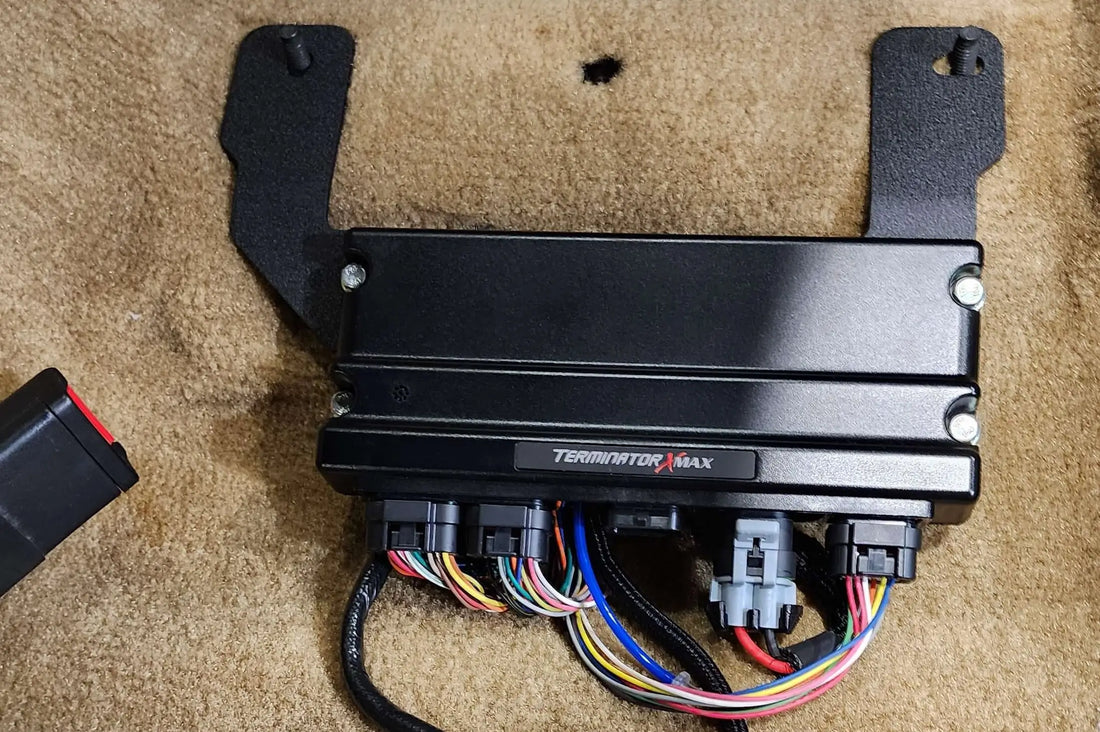

The Basics of ECU Wiring

Understanding the components involved in ECU wiring is the first step to mastering it. Here’s a quick overview of the key wiring connections you’ll work with:

• Power and Ground: These are the fundamental connections that supply the ECU with power and establish a stable electrical ground. A clean, secure ground is critical to avoid electrical noise and interference.
• Inputs: These wires connect various sensors to the ECU, including the throttle position sensor (TPS), manifold air pressure (MAP), oxygen sensors, and crankshaft position sensors. These sensors provide real-time data, which the ECU uses to make decisions about engine management.
• Outputs: Outputs send signals from the ECU to components like the ignition system, fuel injectors, and boost solenoids. The ECU modulates these signals based on the data it receives from the inputs to optimize performance.
• CAN Bus Communication: Many modern vehicles use a CAN (Controller Area Network) system to allow different control units to communicate with each other. The ECU is a key player in this network, sharing data with systems like the transmission control module, ABS (Anti-Lock Braking System), and more in OEM applications, along with your digital dash and your PDM (Power Distribution Module) in an aftermarket application.

Grounding: The Foundation of Reliable Wiring

One of the most critical, yet often overlooked, aspects of ECU wiring is proper grounding. Poor grounding can introduce electrical noise into your system, causing erratic behavior in the ECU, leading to issues like sensor misreads or unstable performance. Ensuring that all grounds are connected to a clean, solid point is vital, as is making sure there is no voltage difference between ground locations. The simplest way to achieve this is by following star-point grounding principles. The core rules are to ground everything directly to the engine block (within reason), while ensuring that each load has a single, dedicated ground path. Follow these rules for all load devices; sensor grounds themselves need to be handled differently.

A best practice when wiring up sensors, is to connect the sensor grounds directly back to the ECU, rather than using your star ground point. This approach reduces the likelihood of ground loops, which can introduce noise and interfere with sensor signals. We will talk more about ground loops another time, those deserve their own entire post.

Shielded Wiring for Sensitive Signals

For certain signals, such as those from crankshaft and camshaft position sensors (sometimes knock and O2 sensors as well), using shielded wiring is essential. These signals are sensitive to interference from high-voltage sources like ignition coils and alternators. Shielded cables help prevent external noise from distorting the signals, ensuring that the ECU gets accurate and reliable data.

Wire shielding can also be used the opposite way, to control interference put out by certain load devices. For example some Electronic Throttle Control (ETC) motors are shielded this way from the factory to keep from inducing voltage into important sensor wiring nearby.

Wiring for Performance Modifications

When you're upgrading your vehicle, more power means the demands on your electrical systems increase. It is important to ensure that your wiring can handle the added load and complexity. Here are a few considerations for performance-oriented setups:

• Fuel System: When upgrading to a higher-flow fuel pump, your wiring must be able to handle the increased current demands. Using the correct gauge wire and ensuring solid connections will prevent voltage drops and overheating, ensuring the pump delivers the fuel pressure required for optimal engine performance, consistently.
• Battery and Charging System: Performance modifications often draw more power, putting additional strain on the battery and alternator. Upgrading to a high-capacity alternator and ensuring the battery cables are sufficiently sized to handle the increased load will help maintain voltage stability and prevent electrical issues during high-demand situations.
• Boost Control: Turbocharged engines with electronic boost controllers require precise wiring. Any fluctuation in the signal to the boost solenoid can lead to inconsistent boost pressure, so it’s essential to use properly shielded and grounded wires for these components.
• Ignition Systems: High-output ignition systems, which are common in performance builds, generate significant electrical interference. Using high-quality, shielded wiring for the ignition outputs and important sensors can help prevent interference and ensure reliable spark delivery; but make sure these two different types of shielding are not terminated together; they should be grounded independently of each other.



Simplifying Your Setup with PDM Systems

Power Distribution Modules (PDMs) are a modern solution that enhance your vehicle's reliability and ease of troubleshooting while providing precise control and monitoring over power distribution. By replacing traditional fuses and relays with solid-state components, you enable a new level of customization, allowing the ability to tailor electrical functions to your specific needs. This centralization of electrical management streamlines operations and enables much more granular control, ensuring your vehicle runs properly when you need it to.

PDMs are invaluable in automotive and motorsport applications for managing and safeguarding electrical systems, especially in high-performance environments. Unlike conventional fuses or relays, PDMs allow users to program precise current limits and monitor real-time electrical loads, enabling proactive protection and quick recovery. If a high-draw electrical component experiences a fault, the PDM can detect excessive current draw, temporarily shut down the affected channel, and automatically retry powering it after waiting a second or two. This functionality helps determine whether the fault is permanent, intermittent, or caused by an external source, allowing users to quickly assess and address potential issues without having to take it into the pits. Additionally, PDMs can be programmed to shut down non-essential systems when power draw exceeds safe levels or reset specific channels to clear transient faults. This adaptability not only reduces the risk of race-ending breakdowns but can also clue you in to possible areas where mechanical upgrades need to be made, such as catching your fuel pump cavitating under high cornering Gs.

In short, PDMs provide an intelligent, customizable approach to power distribution and protection that outperforms conventional systems in both capability and convenience.

Final Thoughts

Wiring is a critical part of any build, and while it may seem complex at first, approaching it step-by-step makes the task manageable. Focus on proper ground and power connections, using shielded cables for sensitive signals, and keep things organized. Whether you’re setting up a standalone ECU, wiring up new performance parts, or simply refreshing your existing setup, mastering the basics of wiring will pay off with a more dependable vehicle.

With attention to detail and a solid understanding of basic electrical principles, you can tackle any wiring project with confidence, ensuring your modifications deliver the performance and function you’re aiming for.

Feel free to reach out to us with any questions at eric@nocturnal-auto.com.
